MingD CNC MD-808 Full Automatic Edge Banding Machine with Pre-milling and Corner Rounding Function

功能单元     FUNCTION

图片                         PICTURE

备注

NOTED

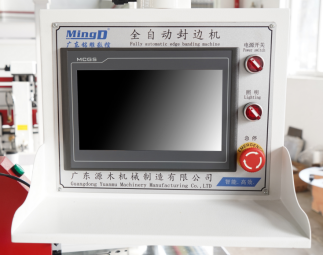

触摸屏TOUCH SCREEN

15英寸高清触摸屏封边机行业领先的触摸屏供应商，零误触反应灵敏

A leading touch screen supplier for 15-inch high-definition touch screen edge banding machines, with zero false touch and sensitive response

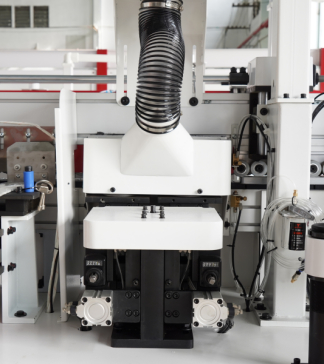

预铣单元PRE-MILLING UINT

电机功率：2.2KW*2台12000R/min

标配铣刀：125*30  H35高

金刚石预铣刀铣去板材切割时的毛刺，使边带能更好的粘贴板材，增加附着力，双电机一正一反加工，减少崩边。

Motor power: 2.2KW * 2 units, 12000R/min

Standard milling cutter: 125*30,    H35 height

The diamond pre-milling cutter removes burrs during the cutting of the board, enabling the edge tape to adhere better to the board and increasing adhesion. The dual motors, one rotating in the forward direction and the other in the reverse direction, reduce chipping.

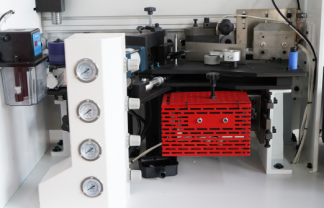

EVA涂胶单元

EVA GLUING UNIT

电机功率：0.75KW*1台

EVA涂胶使用于批量生产，胶仓容积1.5L，具有可排胶功能，避免胶水长期在胶锅中加热变色变质，涂胶轴采用0.8mm网纹，具有涂胶均匀、胶线小的特点。

Motor power: 0.75KW*1 unit. EVA coating is used for mass production, the glue tank volume is 1.5L, with the function of discharge glue, to avoid the color change and deterioration of glue in the glue pot for a long time. The coating shaft adopts 0.8mm mesh pattern, with the characteristics of uniform coating and small glue line.

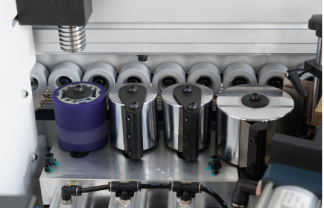

四轮压贴单元FOUR WHEEL PRESS UNIT

采用偏心轮+橡胶轮设计，最大程度的使边带紧紧压贴在板材边缘。

The eccentric wheel + rubber wheel design is adopted to make the edge band press tightly on the edge of the plate to the maximum extent.

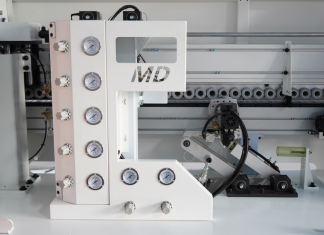

齐头齐尾单元END CUT UNIT

电机功率：0.37KW*2台12000R/min

锯片规格：104*22*30T

切断板材头尾多余的封边带，此功能单元增加了快速泄压阀和高低双气路设计，有效避免刻板。

Motor power: 0.37KW*2 units 12000R/min Saw blade specification: 104*22*30T Cutting the excess edge band at the head and tail of the plate, this function unit adds a quick pressure relief valve and high and low dual air circuit design, effectively avoiding the plate.

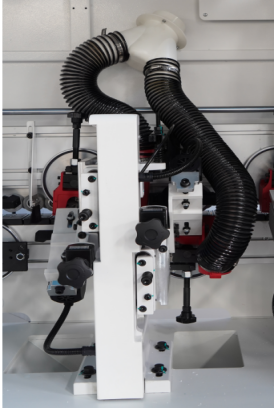

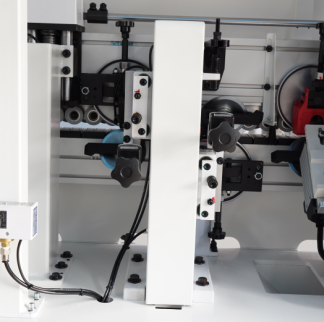

粗修单元ROUGH TRIM UNIT

电机功率：0.75KW*2台12000R/min

刀具规格：56*16*H14*6Z

手动数字表调刀，精准便捷，六刃平刀把板材上下多余的边带切除，为精修做准备。

Motor power: 0.75KW*2 tables 12000R/min Tool specification: 56*16*H14*6Z Manual digital scale to adjust the tool, accurate and convenient, six blades to remove the excess edge of the plate, ready for precision repair.

精修单元

FINE TRIM UNIT

电机功率：0.75KW*2台12000R/min

刀具规格：69*16*H13*6Z*R2

手动数字表调刀，精准便捷，六刃R刀把封边带修出R型弧度，使板材圆弧成形。

Motor power: 0.75KW*2, 12000R/min Tool specification: 69*16*H13*6Z*R2 Manual digital scale to adjust the tool, accurate and convenient, six R-blade handle to form a curved edge, so that the plate is rounded into shape.

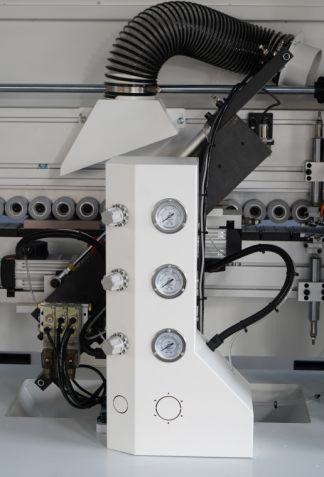

仿形跟踪单元

CORNER ROUND UNIT

电机功率：0.75KW*2台12000R/min

刀具规格：70*16*H16*6Z*R2.5

把板材4个端头进行仿形跟踪，使4个尖角圆润，跟踪结构采用钢结构，更加稳定。

Motor power: 0.75KW*2, 12000R/min Tool specification: 70*16*H16*6Z*R2.5 The four ends of the plate are tracked to make the four sharp corners smooth. The tracking structure adopts steel structure for more stability.

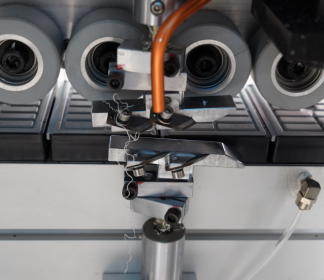

刮边单元

SCRAPING UNIT

刀具规格：20*12*R2

超硬合金刮平封边条细纹。

Tool specification: 20*12*R2 superhard alloy scraping and sealing strip fine line.

柔性刮边单元FLAT SCRAPING UNIT

平面刮刀装置的顶部有2个工具，底部有2个工具，可确保彻底清除边缘表面多余的胶水。

The flat blade device has two tools at the top and two tools at the bottom to ensure that excess glue is completely removed from the edge surface.

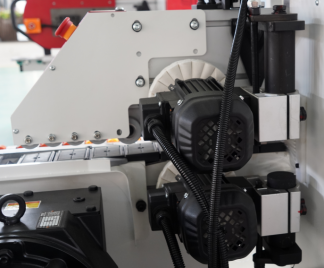

抛光单元

POLISHING UNIT

抛光单元

电机功率：0.37KW*2台  2840R/min

抛光轮快速对封边条修除部分打磨抛光，使封边带光滑圆润，抛光轮接触面积大.采用专利结构设计，更换抛光轮更简便。

Motor power: 0.37KW*2 units 2840R/min The polishing wheel quickly removes part of the sealing strip and polishes it, making the sealing strip smooth and round. The polishing wheel has a large contact area. The patented structure design makes it easier to replace the polishing wheel.

输送单元TRANSFER UNIT

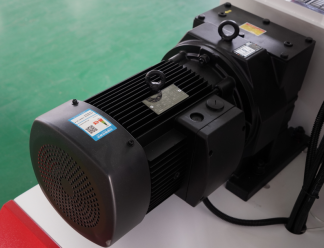

电机功率：4.0KW*1台

输送电机采用大扭矩大功率电机，保证板材输送有力，不卡板，输送平稳静音

Motor power: 4.0KW*1 motor The conveying motor adopts a large torque and high power motor to ensure strong force of plate conveying, no blockage, smooth and quiet conveying

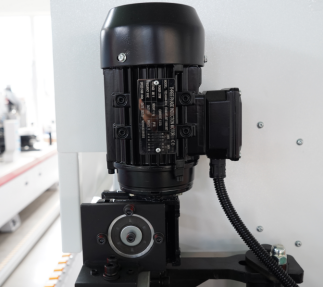

升降单元LIFTING UNIT

电机功率：0.37KW*1台   2840R/min

压梁电动升降，配置有数显表，基材厚度变化是可以电动升降，减少劳动量。

Motor power: 0.37KW*1 unit 2840R/min press beam electric lifting, equipped with digital display, the thickness of the base material can be electric lifting, reducing labor.
